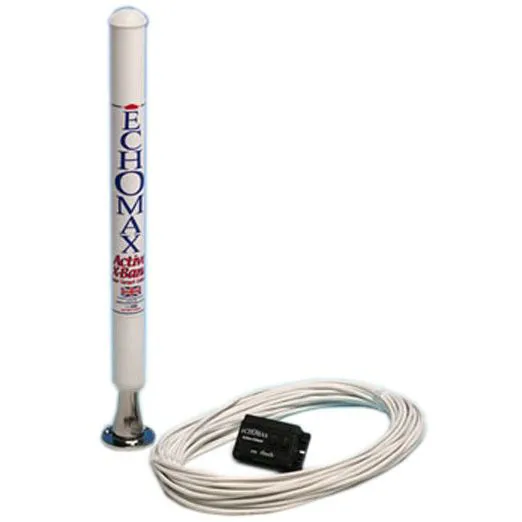

Produktbeskrivelse
- Reception frequency: X band 9.3 - 9.5GHz
- Operating Temp:-20 to 60 degrees C
- Voltage: 12V DC - +30% -10% (voltage surge and cross polarity protected)
- Stand by current consumption: <15mA
- Position Accuracy: within 1 meter
- 5 interrogating radar 23mA (typically)
- 10 32mA (typically)
- EIRP: 1W (typically)
PERFORMANCE RESPONSE
- Zero degrees 111.36M2
- +/-10 degrees of heel 78.96M2
- +/-20 degrees of heel 20.80M2
- * Stated performance level - QinetiQ Anechoic Chamber Funtington 13th March 09
- Exceeds ISO 8729-2 effective 22nd July 09 X band performance requirements
- 7.5M2 @ 10 degrees of heel for motor vessels and 20 degrees of heel for sailing vessels
DIMENSIONS
- Length 478mm width 40.5mm

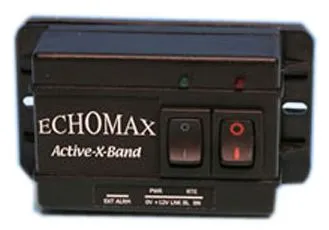

- Control box width 92mm heigth 51mm depth 38mm
- Weight 327 gms excluding cable
- Cable length 24M 2 core 0.5mm2 cable wt. 969grms
